Kits

This is a soft parts rebuild kit for the M1950 stove.
Includes a cap gasket, check valve dot, fuel tube gasket and a new pump leather.
Should cure most issues.

These come in a pair of 2. They are new stainless steel washers that go under the burner frame on all 200 and 242 lanterns. Identical size as the originals.

New 200 burner frame Pal Nut is HERE.

New 200 burner frame Nut is HERE.

Set of 3 O-rings for some Coleman lanterns and backpack stoves. These are the 3 most common sizes of O-rings needed. Most lanterns and small stoves take two. You will get one of each size so there is a good chance you will be able to rebuild whatever you have.

 O-Ring sizes are #6, #7, and #9, made of Flourosilicone.

We know it does work on these models: 533 (need 2), 442

Does not work on the 400B, 508B, 533A, 3024

Rebuild kit for both the 220 and 228 Coleman lanterns. Cures most troubles.

Includes:

• 4 Coleman string tie mantles for your lantern
• 1 Coleman generator
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 2 Cap Gaskets - for the bottom of your fuel cap. 1 each of the two possible types needed

If you need other parts for your lantern, select your model from HERE and look for the blue "Parts" button on the top right corner.

This kit includes two blue Flourosilicone O-rings for the valve stem and one Viton black ring for the fuel & air tube attached to the bottom of the valve. They are the proper replacement size for these models: 222A, 222B, and the 226.

Rebuild kit for both the 200 and 200A lanterns. Cures most troubles.

Includes:

• 4 Coleman string tie mantles for the 200 or 200A lantern
• 1 Reproduction Generator for the 200 or 200A lantern
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 2 Cap Gaskets - for the bottom of your fuel cap. 1 each of the two possible types needed

See Diagram in "Description" under photo at bottom left of this page

More parts for the model 200 HEREand the200A HERE

This is a soft parts rebuild kit for the M1942 stove. Includes the cap gasket, check valve dot, and pump leather.

Rebuild kit for models 242, 242A, 242B, and the 242C lanterns. Cures most troubles.

Includes:

• 4 Peerless string tie mantles for the 242 lanterns
• 1 Generator for the 242 lanterns
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 1 Cap Gasket specific to the 242 - for the bottom of your fuel cap.

See Diagram in "Description" under photo at bottom left of this page

More parts for:

• 242 HERE
• 242A HERE
• 242B HERE
• 242C HERE

Rebuild kit for both the 220 and 228 Coleman lanterns. Cures most troubles.

Includes:

• 4 Peerless Thorium string tie mantles for the 220 or 228 lantern
• 1 Reproduction generator
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 2 Cap Gaskets - for the bottom of your fuel cap. 1 each of the two possible types needed

Rebuild kit for both the 200 and 200A lanterns. Cures most troubles.

Includes:

• 4 Coleman string tie mantles for the 200 or 200A lantern
• 1 Generator for the 200 or 200A lantern
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 2 Cap Gaskets - for the bottom of your fuel cap. 1 each of the two possible types needed
• See Diagram in "Description" under photo at bottom left of this page

More parts for:

• 200 HERE
• 200A HERE


Rebuild kit for both the 200 and 200A lanterns. Cures most troubles.

Includes:

• 4 Peerless Thorium string tie mantles for the 200 or 200A lantern
• 1 Reproduction Generator for the 200 or 200A lantern
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 2 Cap Gaskets - for the bottom of your fuel cap. 1 each of the two possible types needed

More parts for the model 200 HERE and the 200A HERE

Rebuild kit for both the 220 and 228 Coleman lanterns. Cures most troubles.

Includes:

• 4 Peerless Thorium string tie mantles for the 220 or 228A lantern
• 1 Coleman generator
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 2 Cap Gaskets - for the bottom of your fuel cap. 1 each of the two possible types needed

See Diagram in "Description" under photo at bottom left of this page

This kit is for the 550, 550A and 550B stoves specifically. Kit includes 5 O-rings.

Rebuild kit for the 530 Pocket Stove. Includes a new reproduction generator (also called a vaporizer), valve stem packing, new leather pump cup, and a fuel cap gasket.

If you need other parts for the 530 stove, click HERE.

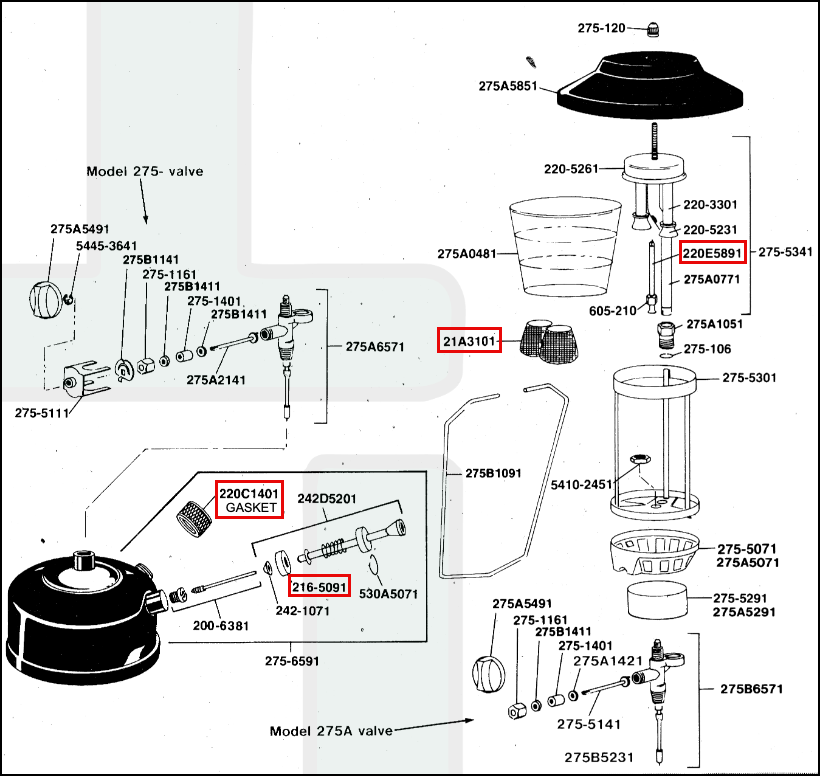

Rebuild kit for both the 275 and 275A lanterns. Cures most troubles.

Includes:

• 4 Coleman string tie mantles for the 275 or 275A lantern
• 1 Generator for the 275 or 275A lantern
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Cap Gasket - for the bottom of your fuel cap.

More parts for:

• 275 HERE
• 275A HERE

Rebuild kit for models 242, 242A, 242B, and the 242C lanterns. Cures most troubles.

Includes:

• 4 Coleman string tie mantles for the 242 lanterns
• 1 Generator for the 242 lanterns
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 1 Cap Gasket specific to the 242 - for the bottom of your fuel cap.

See Diagram in "Description" under photo at bottom left of this page

More parts for:

• 242 HERE
• 242A HERE
• 242B HERE
• 242C HERE

This kit includes two blue Flourosilicone O-rings for the valve stem. They are the proper replacement size for the model 222. Will not work for other models like the 222A or B.

Rebuild kit for both the 286 and 288 Coleman lantern models. Cures most troubles.

Includes:

• 4 Peerless mantles for your lantern
• 1 New Coleman generator
• 1 Rubber replacement pump cup for the bottom of the thumb operated air pump
• 1 Fuel pick up tube for the bottom of the valve inside the tank
• 1 Cap Gasket - for the bottom of your fuel cap. Make sure your cap is flat on top and has not been swapped with an older version with a small bolt in the center.

Click on your model number below to see other available parts:

• 286
• 286A
• 288
• 288A

Rebuild kit for the model 520 military stove. Includes a NOS generator (also called a vaporizer), pump cup, valve stem packing, and fuel cap gasket (stove came with one of two types - each is included). If you need other parts for your stove, click HERE.

Rebuild kit for the early 425 series Coleman stoves. Fits 425, 425B, 425C, 425D for sure. If you have a model E or F please measure your valve stem.

Some model E and F came with both the 1/4" and 3/16" diameter valve stems. Measure yours - if 3/16", this kit is right for you.

This also fits Sears Models 476.72301, 476.72244 & 476.74960. Please measure valve stem on these too.

Includes:

• 1 New Generator with spring and needle - not the valve.
• 1 New valve stem packing
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 2 Cap Gaskets - for the bottom of your fuel cap. 1 each of the two possible types needed

Click on your model number below to see other available parts:

• 425
• 425B
• 425C
• 425D
• 425E
• 425F

Rebuild kit for both the US & Canadian Coleman 237 lanterns. Cures most troubles.

Includes:

• 2 Peerless Thorium mantles for your lantern
• 1 New Old Stock Coleman generator
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 1 Cap Gasket - for the bottom of your fuel cap. Make sure your cap has a small bolt in the center on top, if not, your cap has been swapped with a newer one and you will need THIS gasket.

Click on your model number below to see other available parts:

• 237
• 237A
• 237B

Rebuild kit for the Late 425 series Coleman stoves. Fits 425E, 425F, 425G, and the modern 425 with no letters. If you have a model E or F please measure your valve stem to make sure it is 1/4". See photo.

Some model E and F came with both the 1/4" and 3/16" diameter valve stems. Measure yours - if 1/4", this kit is right for you.

This also fits Sears Models 476.72301, 476.72244 & 476.74960 - possibly. Please measure valve stem on these too.

Includes:

• 1 New Generator with spring and needle - not the valve.
• 1 New valve stem packing
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 2 Cap Gaskets - for the bottom of your fuel cap. 1 each of the two possible types needed

Click on your model number below to see other available parts:

• 425E
• 425F

Rebuild kit for the 500 & 500A stove. Kit includes a new reproduction generator, valve stem packing, leather pump cup, and a new fuel cap gasket (stove came with one of two types - each is included).

If you need other parts for your stove, click HERE.

Rebuild kit for both the 200 and 200A lanterns. Cures most troubles.

Includes:

• 4 Peerless string tie mantles for the 200 or 200A lantern
• 1 Generator for the 200 or 200A lantern
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 2 Cap Gaskets - for the bottom of your fuel cap. 1 each of the two possible types needed
• See Diagram in "Description" under photo at bottom left of this page

More parts for:

• 200 HERE
• 200A HERE


Rebuild kit for both the 282 and 285 Coleman lantern models. Cures most troubles.

Includes:

• 4 Peerless mantles for your lantern
• 1 New Coleman generator
• 1 Rubber replacement pump cup for the bottom of the thumb operated air pump
• 1 Fuel pick up tube for the bottom of the valve inside the tank
• 1 Cap Gasket - for the bottom of your fuel cap. Make sure your cap is flat on top and has not been swapped with an older version with a small bolt in the center.

Click on your model number below to see other available parts:

• 282
• 285
• 285A

Rebuild kit for both the 275 and 275A lanterns. Cures most troubles.

Includes:

• 4 Peerless string tie mantles for the 275 or 275A lantern
• 1 Reproduction Generator for the 275 or 275A lantern
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Cap Gasket - for your fuel cap.

More parts for:

• 275 HERE
• 275A HERE

Rebuild kit for all models of the 220 and 228 Coleman lanterns. Cures most troubles.

Will fit on 220 & 228 lanterns models B thru J.

Includes:

• 4 Peerless Thorium string tie mantles for the 220 or 228 lanterns
• 1 Coleman NOS generator - 1930's production. Tarnished from age, but new
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 2 Cap Gaskets - for the bottom of your fuel cap. 1 each of the two possible types needed

See Diagram in "Description" under photo at bottom left of this page

Rebuild kit for models 242, 242A, 242B, and the 242C lanterns. Cures most troubles.

Includes:

• 4 Peerless string tie mantles for the 242 lanterns
• 1 Coleman Generator for the 242 lanterns
• 1 Leather replacement pump cup for the bottom of the thumb operated air pump
• 1 Valve Stem Packing for sealing fuel leaks around the fuel valve
• 1 Cap Gasket specific to the 242 - for the bottom of your fuel cap.

See Diagram in "Description" under photo at bottom left of this page

More parts for:

• 242 HERE
• 242A HERE
• 242B HERE
• 242C HERE
