This gasket is for many lanterns, stoves, and lamps that take the standard 3 piece filler cap.

If your filler cap is a standard size and has a bolt in the center then these gaskets will work.

Red 3 piece filler cap shown for demonstration purposes only.

This is the common Coleman pump cup that fits most lanterns and stoves.

Has a 7/8 inch diameter and is made in the USA of oiled leather.

This is the common Coleman check valve and air stem that fits most styles of lanterns and stoves made after 1946 and some before that date. These are the updated design that uses a smaller head on the air stem. You won't need your current air stem any more as this comes with a new one that is updated and replaces your old one.

 If your part diagram calls for the 242B5381 or a 621-5361 check valve, then this would be the correct part. It is also known as part number 2006381ZCL.

Typically used to stop a fuel leak from the valve stem on older appliances.

This is the larger valve stem packing. It is 5/16" long. The hole diameter is 1/4". It would be used on most modern lanterns, lamps, and stoves. This will only work on valve stems that are 1/4" in width.

If you need to check your model, please see the PARTS DIAGRAM PAGE.

425F stoves could use either this or the P2 packing. Make sure your stem diameter is 1/4" for this part. If it is smaller, you need the P2 HERE.

Coleman made the same product under two different part numbers. This is the same as part number 118B6201 and 118D6201.

Made of 100% graphite.

This gasket is for the model 227, 427, 220/228 Slant lanterns, most winged style fuel caps, early 220B's, and other similar lanterns and lamps that have the older style cap insert.

It is the same outside diameter as the common three piece cap gasket but has a smaller inside hole.

Old part number 115-1361.

This will not seal the typical Coleman lantern cap.

This is a new brass one piece filler cap made by Coleman. Comes with a new gasket and will fit most all lanterns and stoves other than the model 242 lantern and 500 stove that have the smaller filler caps.

It is also known as part number 425A1405.

Small thin O ring for the common Coleman check valves. Made of gas resistant material.

Used pump clip that fits most lanterns and stoves. It is used but in fine shape.

This is a reproduction inner disc for the old 3 piece caps. Comes with a new gasket and is made of brass.

Pump Clip

This filler cap is made by the Amish so you can pump up your lantern or stove with a bicycle pump. Fits most all styles of lanterns and stoves.

This is a used part and may show signs of wear. There may also be a few small chips in it. This is the old style black valve wheel for 200A, 202, 220D, 220E and 220F, and others. It is completely interchangeable with the red wheel. Newer model 200A's and model 202 took the black wheel. It is the solid back style.

This 10 pack of gaskets are for many lanterns, stoves, and lamps that take the standard 3 piece filler cap.  If your filler cap is a standard size and has a bolt in the center then these gaskets will work. Red 3 piece filler cap shown for demonstration purposes only.

This is a new metal filler funnel. Small and easy to pack. See its size in the last photos where it is being used on a fount. Works well for standard sized filler caps. Will not work for the smaller filler caps on models 242, 243, 247, 249 lanterns with the smaller cap or the 500 stove.

This is a used part and may show signs of wear or have a few chips in it. This is the new style black valve wheel for 200A's, models 220H, 220J and 220K, 228F and others. It is completely interchangeable with the red wheel. Newer model 200A's and model 202 took the black wheel. The main difference is the hollow style back. In the 426 stove series, this only fits 426 or 426A

This filler cap is made by the Amish so you can pump up your lantern or stove with a bicycle pump. Fits most all styles of lanterns and stoves.

NOS lighting stem.

This is reproduction of the older style of check valve that would take the original air stem with the larger end. Excellent craftsmanship on these.

Also known as 200-6381 and without the air stem.

This is a 10 PACK - Typically used to stop a fuel leak from the valve stem on older appliances.

This is the larger valve stem packing. It is 5/16" long. The hole diameter is 1/4". It would be used on most modern lanterns, lamps, and stoves. This will only work on valve stems that are 1/4" in width.

If you need to check your model, please see the PARTS DIAGRAM PAGE.

425F stoves could use either this or the P2 packing. Make sure your stem diameter is 1/4" for this part. If it is smaller, you need the P2 HERE.

Coleman made the same product under two different part numbers. This is the same as part number 118B6201 and 118D6201.

Made of 100% graphite.

This is a used one piece filler cap. Paint is chipped or missing - each one will vary in wear. Comes with a new gasket foryou to install.

This is a 10 PACK of the common Coleman pump cup that fits most lanterns and stoves.

Has a 7/8 inch diameter and is made in the USA of oiled leather.

This is for one used 3 piece filler cap. They are in various stages of wear. Paint is chipped or missing and could look like any of these in the photo. We start by handing out the ones in best shape first.

We are showing 3 caps for demonstration purposes only to highlight the condition it could be in - This is for only one cap.

Comes with a new gasket that you will have to install.

This is a new brass retainer ring used on the bottom of many Coleman valve stems. This is designed for a 1/4" valve stem diameter, but can be cut for the smaller 3/16" versions if needed. You will need to open it up, place it over the valve stem, then bend it back. This is used to hold the bushing in place in front of the valve stem packing.

This is a used one piece filler cap. Paint may be chipped or missing andwill vary in wear. Gray in color like the new production Dual Fuel models. Includes a new gasket for you to install.

Original NOS Coleman pump cup that fits most lanterns and stoves, they have been sitting around for many years and may not have their perfect shape.

Has a 7/8 inch diameter and is made in the USA of oiled leather.

This is a used steel 3 piece cap.  Comes with a new gasket that you will have to install.

Older style check valve that takes the older larger end air stem. Fits the same appliances as the 200-6381 check valve does. The difference is the air stem end. Fits 249 lantern.

In the 426 stove series, this only fits 426 and the 426A. Will not fit B, C, D, E Will fit the 520 stove.

This is a new 8 oz. gas bottle used to fill gas lanterns, stoves and lanterns.

Needle & Holder

This is a used 3 piece filler cap. They are in various stages of wear. Paint is chipped or missing and could look like any of these in the photo. We start by picking out the ones in best shape first.

We are showing 3 caps for demonstration purposes only to highlight the condition it could be in - This is for only one cap.

Comes with a new gasket for you to install if needed.

This is for one used 3 piece filler cap. They are in various stages of wear. Finish may be chipped or missing and could look like any of these in the photo. We start by handing out the ones in best shape first.

We are showing 3 caps for demonstration purposes only to highlight the condition it could be in - This is for only one cap.

Comes with a new gasket that you will have to install.

Original NOS Coleman Graphite Packing.

Typically used to stop a fuel leak from the valve stem on older appliances.

This is the larger valve stem packing. It is 5/16" long. The hole diameter is 1/4". It would be used on most modern lanterns, lamps, and stoves. This will only work on valve stems that are 1/4" in width.

If you need to check your model, please see the PARTS DIAGRAM PAGE.

425F stoves could use either this or the P2 packing. Make sure your stem diameter is 1/4" for this part. If it is smaller, you need the P2 HERE.

Coleman made the same product under two different part numbers. This is the same as part number 118B6201 and 118D6201.

Made of 100% graphite.

Fuel and Air Tube

Small thin O ring for the common Coleman check valves. Made of gas resistant material.

This is a used one piece brass filler cap. Wear will vary.

Comes with a new gasket that you will have to install.

This is a used 3-piece filler cap made of brass. Copper in color. This one is in good condition.

Comes with a new gasket that you will have to install.

Original NOS Coleman pump cup that fits most lanterns and stoves.

They are flat and have lost most of their shape from sitting around over the years

Has a 7/8 inch diameter and is made in the USA of oiled leather.

Used nickel plated one piece cap. Fits most lanterns and stoves except for the model 242 lantern and model 500 stove. Wear and finish will vary. Comes with a new gasket that you will have to install.

This is a new, reproduction 3 piece cap. Excellent craftsmanship. This is not the type with a hole in the side.

This is a used one-piece filler cap that is the darker green used on 288 and similar lanterns. Paint may be chipped or scratched; each one will vary in wear. Comes with one new gasket for you to install if needed.

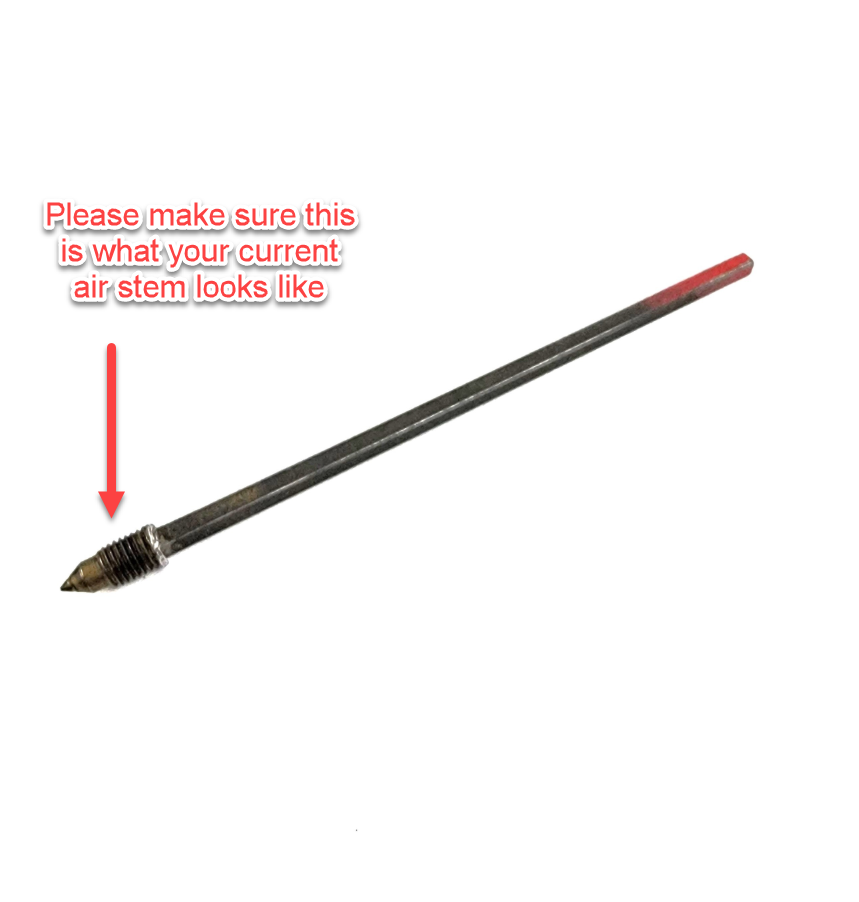

Reproduction long air stem that fits the larger check valve used on the 220/228B and 220/228C lanterns. Also fits military lanterns. Measures 5 9/16 inches long.

Used filler cap that will fit most lanterns and stoves other than the model 242 lantern and 500 stove that have the smaller filler caps.

These are all assorted colors that have missing paint, are tarnished or have been repainted and do not match the original color - photo is for illustration purposes only - comes with one filler cap and new gasket you will have to install.

This is a NOS old style black valve wheel for 200A, 202, 220D, 220E and 220F, and others. It is completely interchangeable with the red wheel. Newer model 200A's and model 202 took the black wheel. May have some minor scratches from sitting around all these years.

Block and needle

This is a used one piece filler cap from a 275 lantern. Paint may be chipped or missing in some spots - wear will vary. Comes with a new gasket that you will have to install.

Used steel filler cap for Coleman lanterns. All will vary in wear.

Comes with a new gasket that you will have to install.

NOS long air stem that fits the larger check valve used on the 220/228B and 220/228C lanterns. Also fits military lanterns. Measures 5 9/16 inches long.
